China Gas Oil Fired Thermal Fluid Heater,Thermal Oil Boiler For Wood Processing Plant

Henan Jinzhen Boiler Co., Ltd.

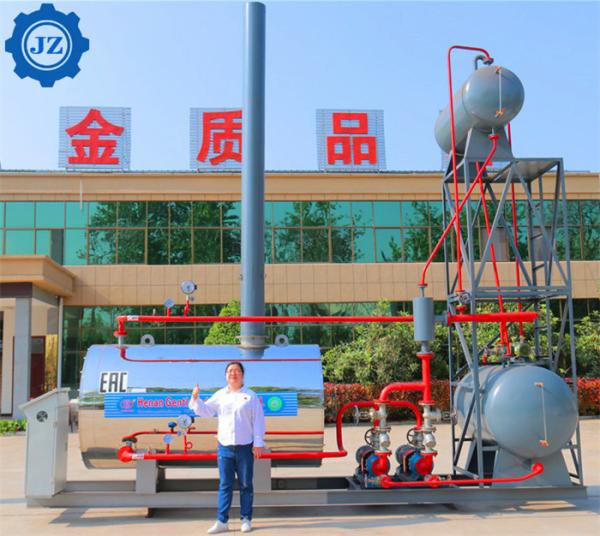

China Gas Oil Fired Thermal Fluid Heater,Thermal Oil Boiler For Wood Processing Plant

Brand Name : Jinzhen Boiler

Model Number : YY(Q)W-350

Certification : IS900

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 set per month

Delivery Time : 5-8 work days

Packaging Details : boiler body and large auxiliary equipments are nude packed

item : hot oil boiler, thermal oil heater

Structure : hot oil tube

Pressure : low pressure

Style : Horizontal

Fuel : Oil,Gas,Diesel,LPG,HFO,Lng

thermal power : 120kw, 240kw, 350kw, 500kw,700kw

thermal effiency : >75%

Design Pressure : 1.0Mpa

Working Pressure : 0.8Mpa

Medium outlet temperature : <350C

Heating area : 9.8-520M2

warranty : 2 years

weight : 1.5-32ton

Contact Now

China Gas Oil Fired Thermal Fluid Heater,Thermal Oil Boiler For Wood Processing Plant


General introduction

Thermic Fluid Heater, thermal oil boiler, hot oil boiler

thermal capacity: 350kw-1400KW

Working pressure:0.8-1.0 MPA

Outlet temperature:320 C

Available fuel:natural gas, coke oven gas, bio-gas,liquefied petroleum gas, diesel, heavy oil, light oil, crude oil

Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

This series thermal oil boiler has compact structure. The heating area is constituted by close-knit coil pipes from inside to outside.Inside coil pipes are the radiation heating surface, and the outer surface of inside coil pipes and outside coil pipes form a convection heating surface.Fuel burn fully in the combustion chamber, the radiation heating surface absorb most heat, and then high temperature flue gas goes into convection heating surface to exchange heat, then go into the air preheater (or waste heat boiler) to heat the required (or water).at last, the low temperature flue gas discharges to the aerosphere through the chimney.

Technical parameters

Model No. Thermal power(kcal/h)

Heating efficiency

(%)

Max. working temp.(℃) Medium circulation(M3/H)

Transport size

(mm)

Weight

(Kg)

YY(Q)W-120Y(Q) 10*104 ≥92.26 340 12.5 Φ1060*2045 1215
YY(Q)W-240Y(Q) 20*104 ≥92.26 340 18 Φ1020*1980 1355
YY(Q)W-350Y(Q) 30*104 ≥92.26 340 30 Φ1212*2310 1590
YY(Q)W-500Y(Q) 40*104 ≥92.26 340 30 Φ1212*2730 1680
YY(Q)W-700Y(Q) 60*104 ≥92.26 340 60 Φ1400*3410 2715
YY(Q)W-900Y(Q) 80*104 ≥92.26 340 80 Φ1616*3400 3142
YY(Q)W-1200Y(Q) 100*104 ≥92.26 340 100 Φ1616*4000 3660
YY(Q)W-1400Y(Q) 120*104 ≥92.26 340 100 Φ1820*4905 5420
YY(Q)W-2000Y(Q) 160*104 ≥92.26 340 100 Φ1840*4950 7850
YY(Q)W-2400Y(Q) 200*104 ≥92.26 340 160 Φ2060*4700 8850

Performance characteristics:

1, larger coil combustion chamber can make the combustion in low temperature and reduce the nitrogen oxides emissions with the characters of energy saving and environmental protection.

2, the thermal oil heater structure increases the thermal efficiency. And the high-density ring tube design structure can also reduce the occupation space.

3. The reasonable circulation section structure of multi-pass heat transfer ensure the thermal oil flow load uniform and the operation stable

4, complete control system with warning system, easy operation, safe operation.

5. Spiral coil inside and outside the furnace is composed of many small diameter tube with the advantage of good performance thermal expansion and low pressure.

6, The output (oil) temperature can be accurately controlled. Medium temperature, pressure and smoke temperature protection can also be controlled.

The thermal oil heaters in assembly structure is easy for installation by just connecting system devices. Intelligent control system makes heater operation control easy. Controller with screen display has auto igniting, burning, circulation pumps control, alarm and other control functions.

Thermal oil boiler are insulated with rock wool, whose thickness of which is 100 mm to minimize heat loss and the rock wool is covered with embossed metal sheet, whose thickness of which is 0.8 mm.

Installation drawing

Scope of application:

No. industry usage
1 Chemical industry polymerization industry,oil industry,reaction tank,distillation,enrichment, oil chemical industry, industry, polymerization reaction cans, distillation, concentration
2 Plastic industry plastic foam and squeeze to finalize the design,
3 Textile industry resin stenters,dyeing machine and the dry room,high temperature machine,roller
4 Rubber industry cooking,dry,vegetable oil refining
5 Wood industry heating to finalize the design of chipboard,sandwich plate,wamu board,fiber
6 Paper industry multi-layer cardboard of packed carton box,dying and desiccation
7 Others heating of metal electroplating slot,coating condensation,drying,distillation of pharmaceutical industry,reduction,concentration,dehydration,air conditioning industry,etc
